Indoor · Fixed and rental
MS Series
Light, thin fixed display that doubles for rental use. 1.9 to 3.9mm, front maintenance, in one 500 x 500 cabinet.
Why MS Series
Light, fast to service, ready for anything

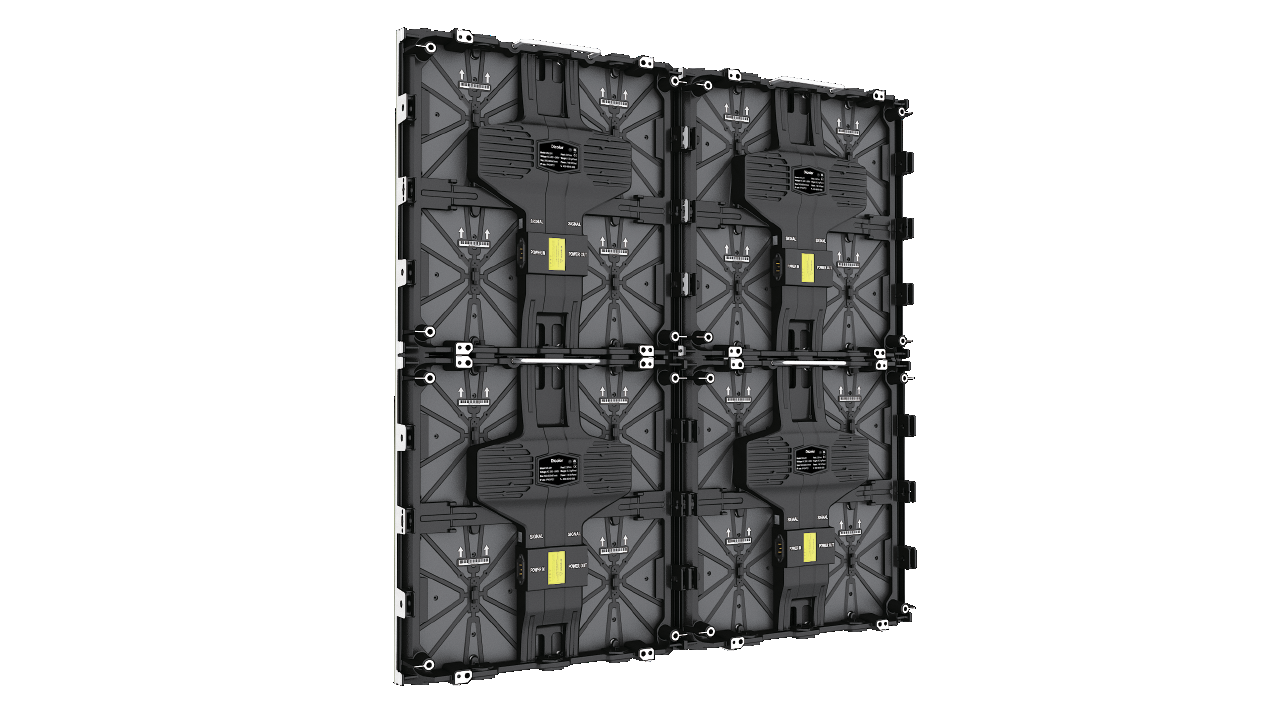

Extremely light and thin
Under 62mm thick and around 5.8kg per cabinet, ahead of comparable suppliers. Easy to handle and quick to hang.
Under 62mm5.8kg500 x 500

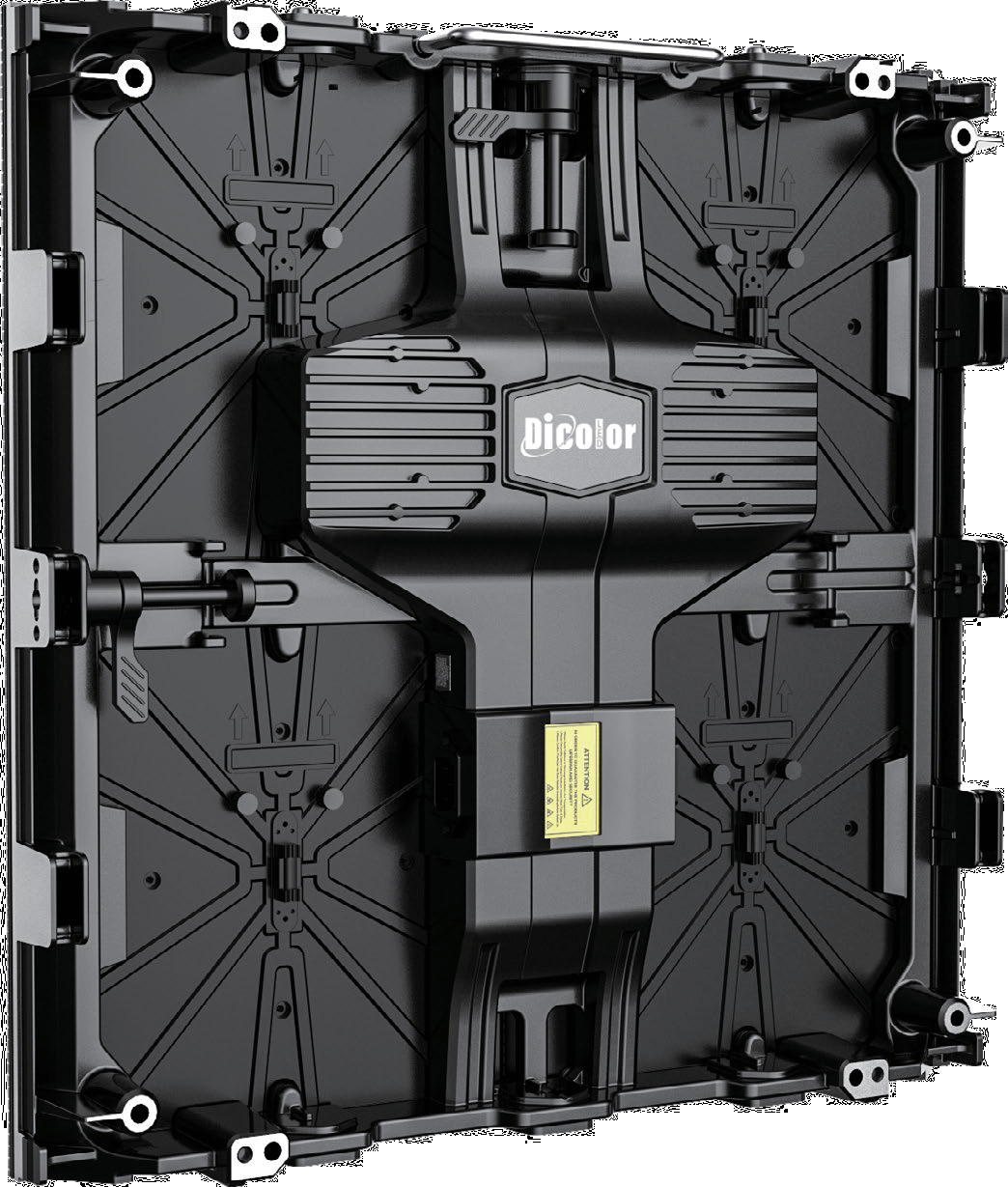

Front maintenance
Modules and receiving cards remove from the front, so the screen can be serviced fast in tight, wall-mounted installs.
Front service

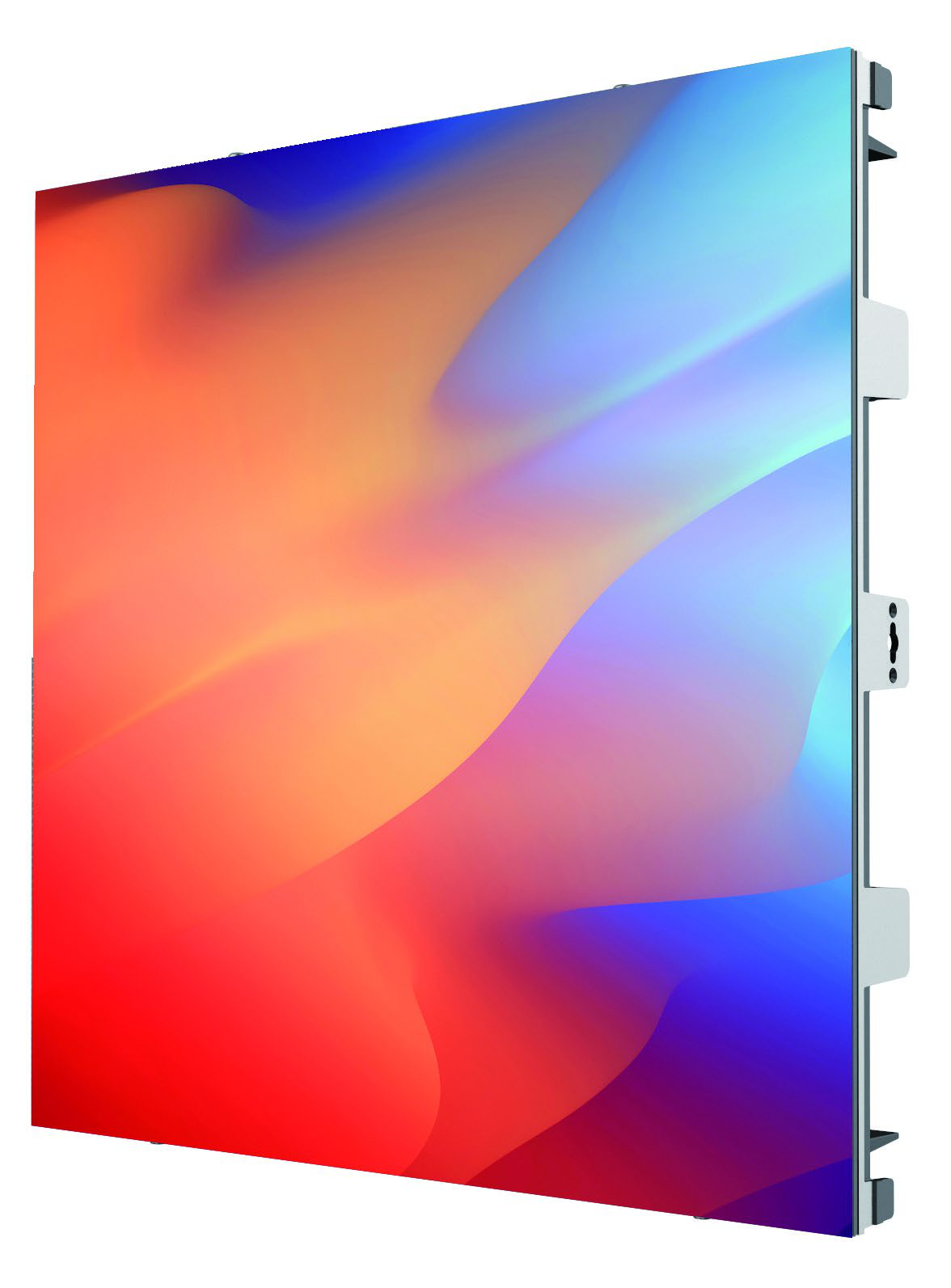

Camera-ready picture
Up to 3840Hz refresh and 800 nits give clean, stable capture on camera, whether the screen is fixed or live.
Up to 3840Hz800 nits

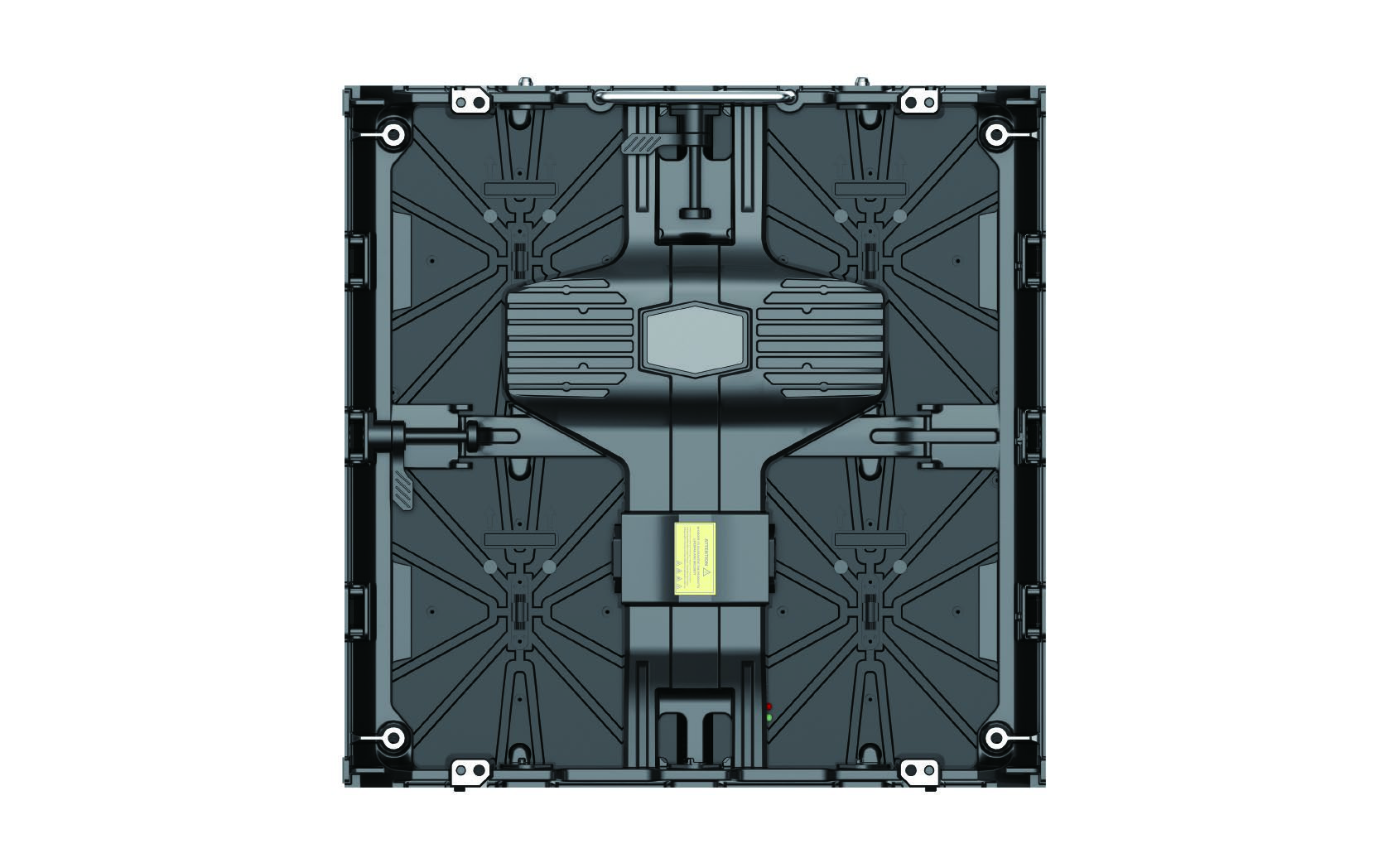

Fixed or rental
One screen supports both fixed installation and rental use, with right-angle and curved splicing for varied shapes.
Fixed and rentalCurved splicing
Additional Information
Specification
MS-191
MS-261
MS-291
MS-391
Pixel pitch (mm)
1.953
2.604
2.97
3.91
Cabinet size (mm)
500 x 500 x 62
500 x 500 x 62
500 x 500 x 62
500 x 500 x 62
Cabinet resolution (px)
256 x 256
192 x 192
168 x 168
128 x 128
Cabinet weight (kg)
5.8
5.8
5.8
5.8
Brightness (nits)
800
800
800
800
Refresh rate (Hz)
≥7680
≥7680
≥7680
≥7680
Grey scale (bit)
15
16
16
16
IP rating (front / rear)
IP40 / IP21
IP40 / IP21
IP40 / IP21
IP40 / IP21
Max power (W/m2)
500
544
544
400
Avg power (W/m2)
167
181
181
133
Curve angle
0 to 90°
0 to 90°
0 to 90°
0 to 90°
Maintenance
Front
Front
Front
Front
Product video
Download product videoInterested in the MS Series?
Tell us about your space and we will recommend the right configuration, then back it locally.
LED screen display technology for the Australian market. Australian-based sales, technical and service support.
