Flexible · Curved
US Series
Shape your world with the smallest, smoothest curved screens. Bendable modules, S-shapes, and full circles from a single cabinet line.
Why US Series
Built to curve, built to tour

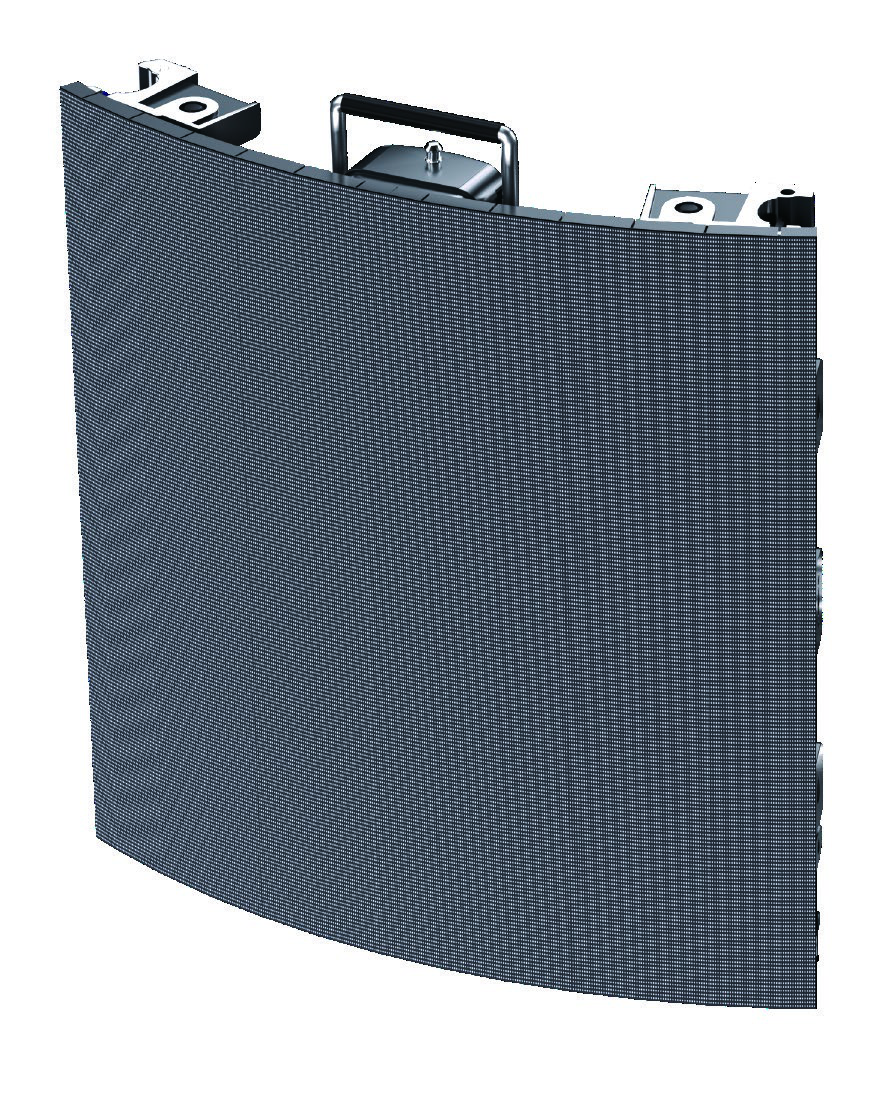

Free curved surface
A single cabinet curves up to 45 degrees, two join at 90 degrees, and eight form a circle just 1.27m across. Real flexibility from one cabinet line.
Up to 45 degrees90 degrees at two cabinets
S-shape in one cabinet
A single cabinet can form an S, opening up highly creative shapes for stage, retail and experiential builds.
S-shapeCreative builds

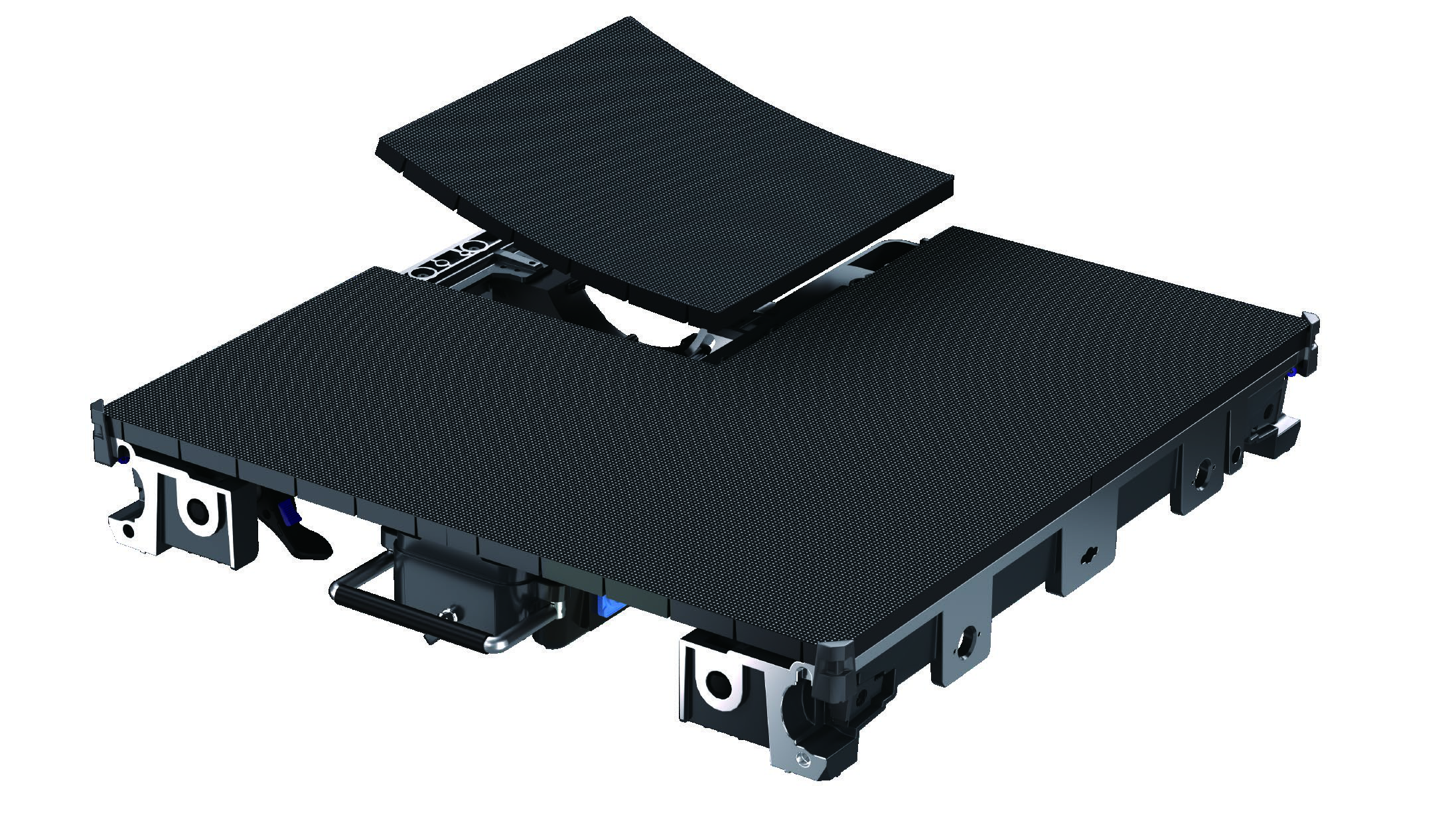

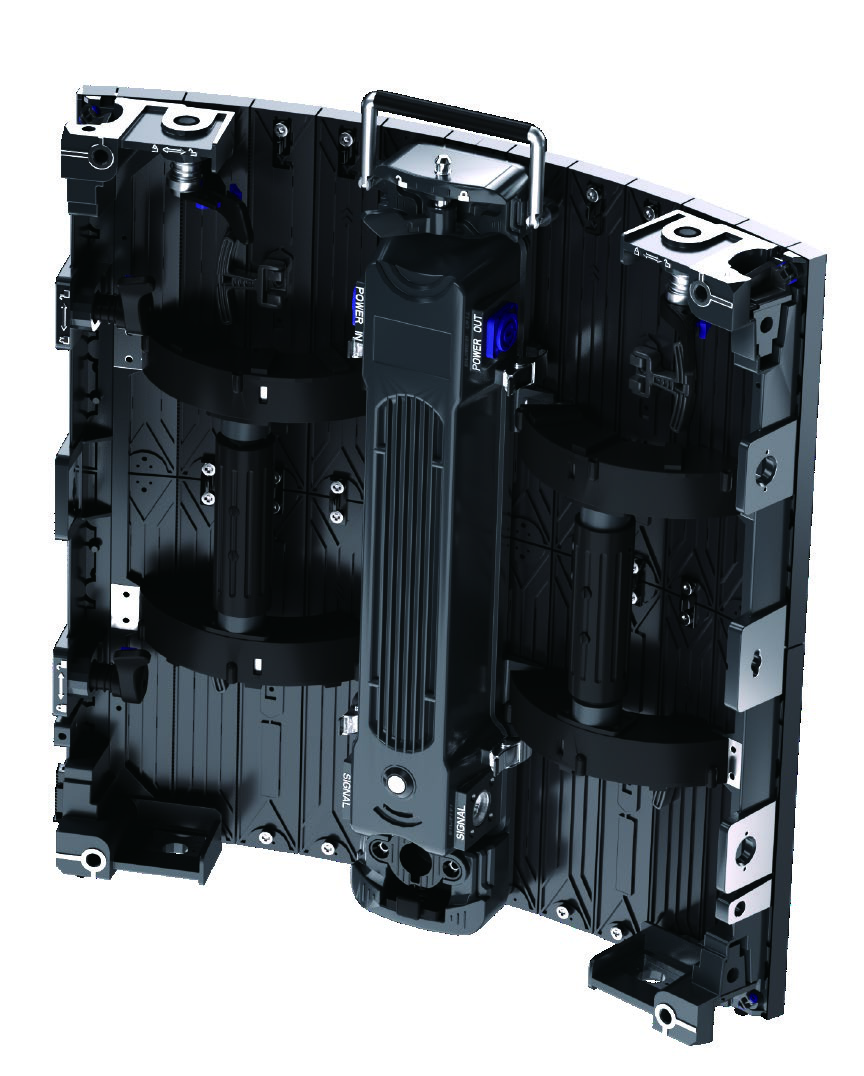

Bendable modules
250 x 250mm modules bend without the bright and dark lines of letter-style modules, and the universal module, power box and cabinet swap in about 10 seconds.
250 x 250 modules10-second swap
Built for touring
High-protection corners stand up to repeated touring, and multiple cabinet variants mix together for varied builds.
Corner protectionMixed splicing
Additional Information
Specification
US-191
US-231
US-261
US-291
US-391
Pixel pitch (mm)
1.953
2.38
2.604
2.976
3.906
Cabinet size (mm)
500 x 500 x 80
500 x 500 x 80
500 x 500 x 80
500 x 500 x 80
500 x 500 x 80
Cabinet resolution
256 x 256
210 x 210
192 x 192
168 x 168
128 x 128
Module size (mm)
500 x 250
500 x 250
500 x 250
500 x 250
500 x 250
Cabinet weight (kg)
8.8
8.8
8.8
8.8
8.8
Brightness (nits)
800
800
800
800
800
Refresh rate (Hz)
≥7680
≥7680
≥7680
≥7680
≥7680
Grayscale (bit)
15
16
16
16
16
Ingress protection
IP40
IP40
IP40
IP40
IP40
Power max / avg (W)
500 / 167
600 / 200
560 / 187
600 / 200
600 / 200
Curve range
±45°
±45°
±45°
±45°
±45°
Maintenance
Front module swap
Front module swap
Front module swap
Front module swap
Front module swap
Product video
Download product videoInstallation video
Download installation videoInterested in the US Series?
Tell us about your space and we will recommend the right configuration, then back it locally.
