Outdoor · DOOH and sport

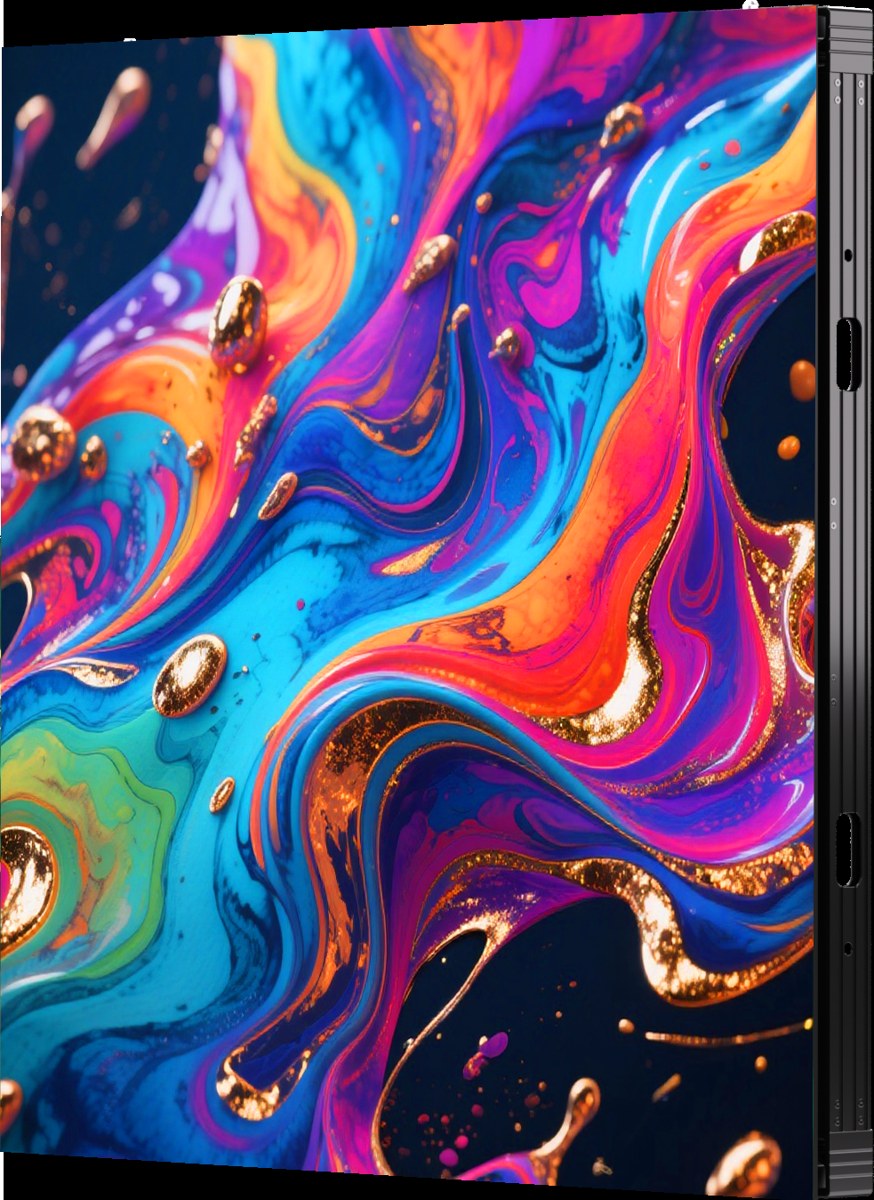

ME Series

High-brightness outdoor LED for digital out-of-home and big-stage sport. 7,500 to 10,000 nits, ultra-thin 75mm profile-aluminium cabinets, IP66 & IP69K, and DCD energy-saving that cuts power use by over 30%.

Enquire Additional Information

Why ME Series

Built to be seen, built to last

Brightness that cuts through daylight

7,500 to 10,000 nits keeps content punchy in direct sun, ideal for digital out-of-home and big-stage sport.

Serviceable, front and rear

Integrated power supply with front and rear maintenance and tool-free module access, so servicing is quick from either side.

Ultra-thin and light

A 75mm profile-aluminium cabinet at just 19.7kg, with front and rear service to cut install and maintenance time.

Weatherproof and power-smart

IP66 and IP69K protection for harsh outdoor conditions, with DCD energy-saving that cuts power use by over 30%.

Additional Information

Specifications Spec sheet Product introduction CAD drawing Product video Installation video

Specification

6.67 mm

8 mm

10 mm

Pixel pitch (mm)

6.67

Cabinet size (mm)

960 x 960 x 75 / 1280 x 960 x 75

Brightness (nits)

7500 to 10000

Scan

1/5S

1/3S

1/2S

Refresh rate (Hz)

≥7680

IP rating

IP66 & IP69K

Module size (mm)

320 x 480

Module resolution (W×H)

48x72

40x60

32x48

Cabinet resolution (W×H)

144x144 or 192x144

120x120 or 160x120

96x96 or 128x96

Pixel density (dots/m²)

22,500

15,625

10,000

Cabinet material

Profile aluminium

Cabinet weight (kg)

19.7 / 26 (21.4 kg/m²)

Depth (mm)

Viewing angle (H/V)

160° / 100°

Contrast ratio

15,000:1

20,000:1

30,000:1

Max power (W/m²)

420 to 560

Average power (W/m²)

140 to 187

Voltage

AC100 to 240V (50/60Hz)

Service life

≥100,000 hrs

Compliance

EMC Class B, CE

Ultra-thin at 75mm and light at 19.7kg per cabinet (21.4 kg/m²), with IP66 & IP69K protection for harsh outdoor conditions and a service life over 100,000 hours. Contact us for pricing and lead time.
