Outdoor · High brightness

MP Series

Energy-saving outdoor fine pitch, built for direct sunlight. Up to 10,000 nits, IP65, and front and rear service.

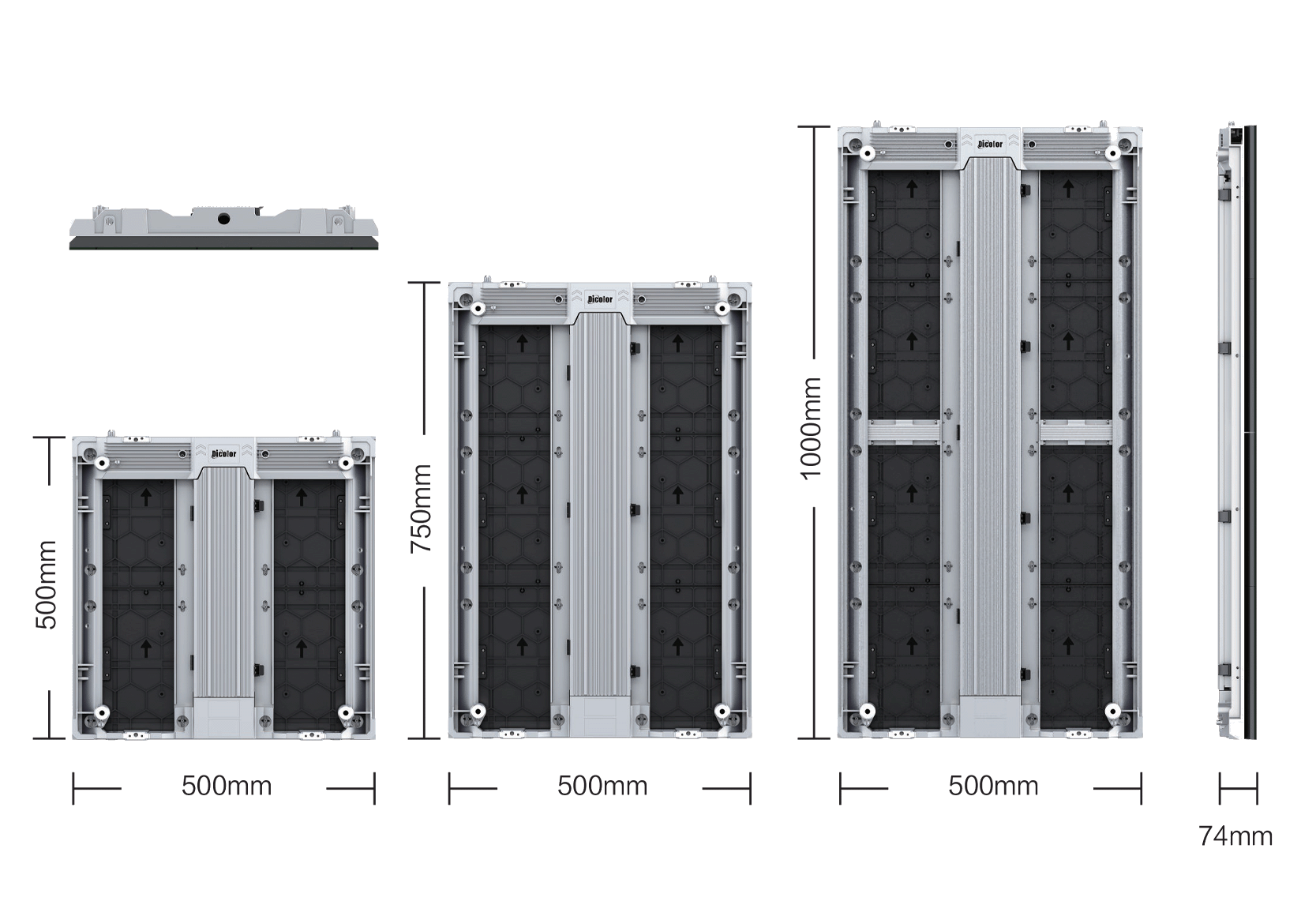

Dicolor MP Series outdoor LED panel
Why MP Series

Bright, efficient, weatherproof

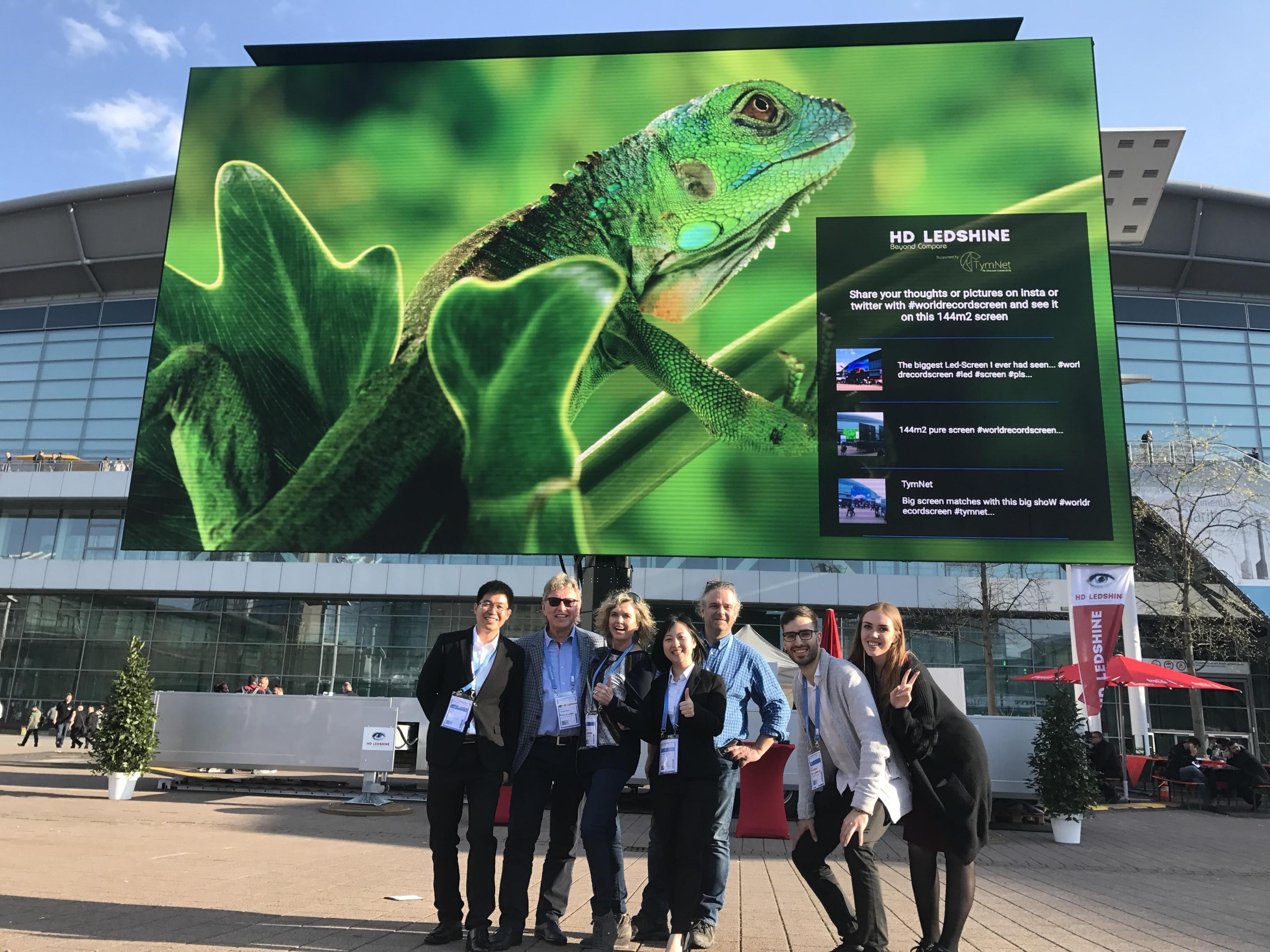

MP outdoor brightness

Up to 10,000 nits

Dedicated visibility under strong direct sunlight, with a 7680Hz refresh and 110% NTSC colour for clean, vivid outdoor imagery.

Up to 10,000 nits110% NTSC
MP energy-saving operation

3rd-generation energy saving

Precision RGB voltage control cuts power consumption by more than 20% and runs around 20% cooler, lowering running cost on long-duration screens.

20% less power20% cooler

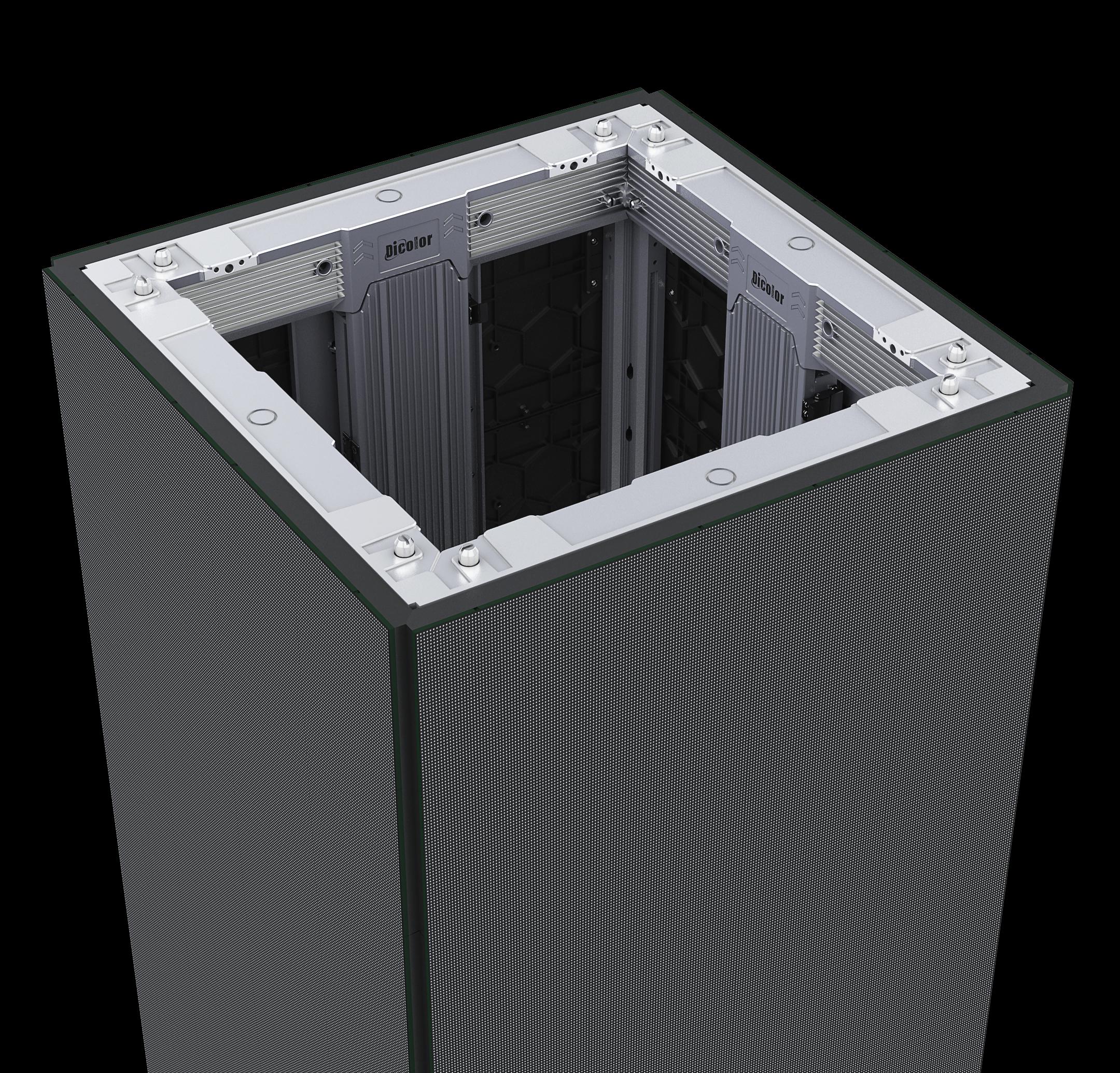

MP cabinet sizes and corners

Any size you need

500 x 500, 500 x 750, 500 x 1000 and 1000 x 1000 cabinets plus 90 degree corner panels, on a light, thin die-cast aluminium frame.

Multiple cabinet sizes90 degree corners

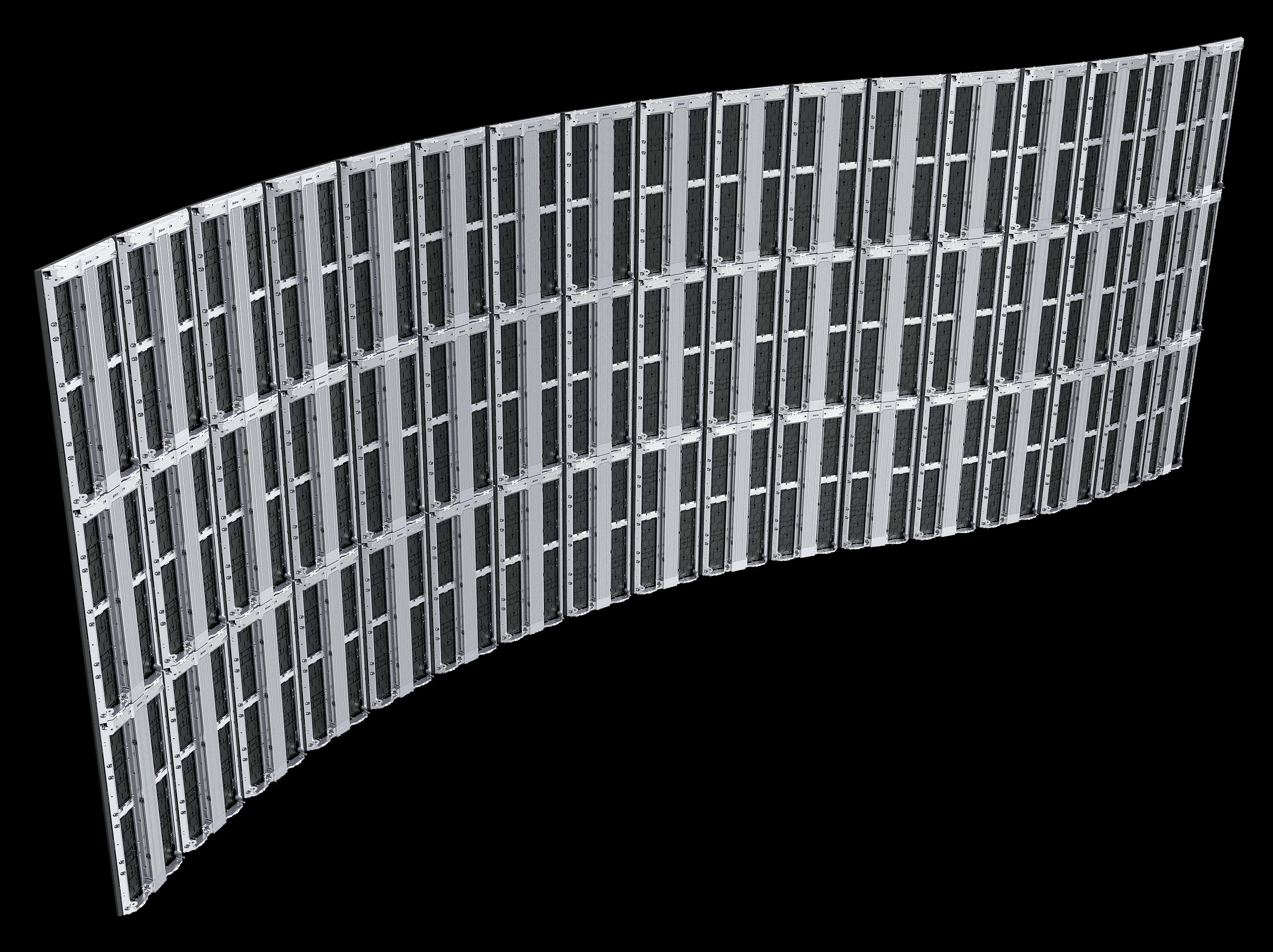

MP weatherproof module

High weather resistance

IP65 with module-level waterproofing, a ventilating-valve design and safe-lock modules, serviceable from front and rear to lower operating cost.

IP65Module-level waterproof
In the field

MP480 large-format LED at Burnside Village, Adelaide — a 130.5 m² facade that runs as one image or splits into zones for individual retailers. Read the case study →

Additional Information

Specification
MP-260V2
MP-290V2
MP-390V2
MP-480V2
MP-590V2
MP-780V2
MP-100V2
Pixel pitch (mm)
2.6
2.9
3.9
4.8
5.9
7.8
10
Brightness (nits)
4000
4500
5000
5000
7000
up to 10000
up to 10000
Refresh rate (Hz)
7680
7680
7680
7680
7680
7680
7680
Scan rate
1/24
1/21
1/11
1/8
1/6
1/4
1/2
Grey scale (bit)
16
16
16
16
16
16
16
IP rating
IP65
IP65
IP65
IP65
IP65
IP65
IP65
Service
Front and rear
Front and rear
Front and rear
Front and rear
Front and rear
Front and rear
Front and rear
LED
SMD1515
SMD1515
SMD1921
SMD1921
SMD2727
SMD2727
SMD2727
Cabinet material
Die-casting aluminium
Die-casting aluminium
Die-casting aluminium
Die-casting aluminium
Die-casting aluminium
Die-casting aluminium
Die-casting aluminium
Cabinet sizes (mm)
500x500
500x500 / 500x750 / 500x1000
500x500 / 500x750 / 500x1000
500x500 / 500x750 / 500x1000 / 1000x1000
500x500 / 500x750 / 500x1000 / 1000x1000
500x500 / 500x750 / 500x1000 / 1000x1000
500x500 / 500x750 / 500x1000 / 1000x1000
Cabinet depth (mm)
68
68
68
68
68
68
68
Colour gamut
110% NTSC
110% NTSC
110% NTSC
110% NTSC
110% NTSC
110% NTSC
110% NTSC
Certificate
CE, FCC, ETL
CE, FCC, ETL
CE, FCC, ETL
CE, FCC, ETL
CE, FCC, ETL
CE, FCC, ETL
CE, FCC, ETL

Interested in the MP Series?

Tell us about your space and we will recommend the right configuration, then back it locally.
