UT Plus

High brightness up to 4500 nits with high transparency for large stage and architectural builds. A lightweight magnesium alloy cabinet supports up to 20m suspension without external reinforcement.

Specifications Additional Information

Why UT Plus

See-through, light, fast to rig

High transparency

A high see-through rate and low wind resistance make UT Plus ideal for stage-and-art combinations and architectural glass.

High see-throughLow wind load

Lightweight magnesium alloy cabinet

A magnesium alloy cabinet at around 16.5kg keeps large builds light, and it suspends up to 20m without external reinforcement for tall stage and rigging setups.

16.5kg cabinet100mm thick

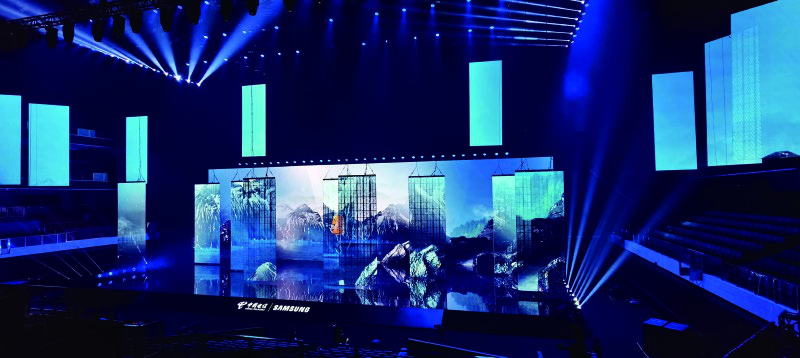

Built for stage and rigging

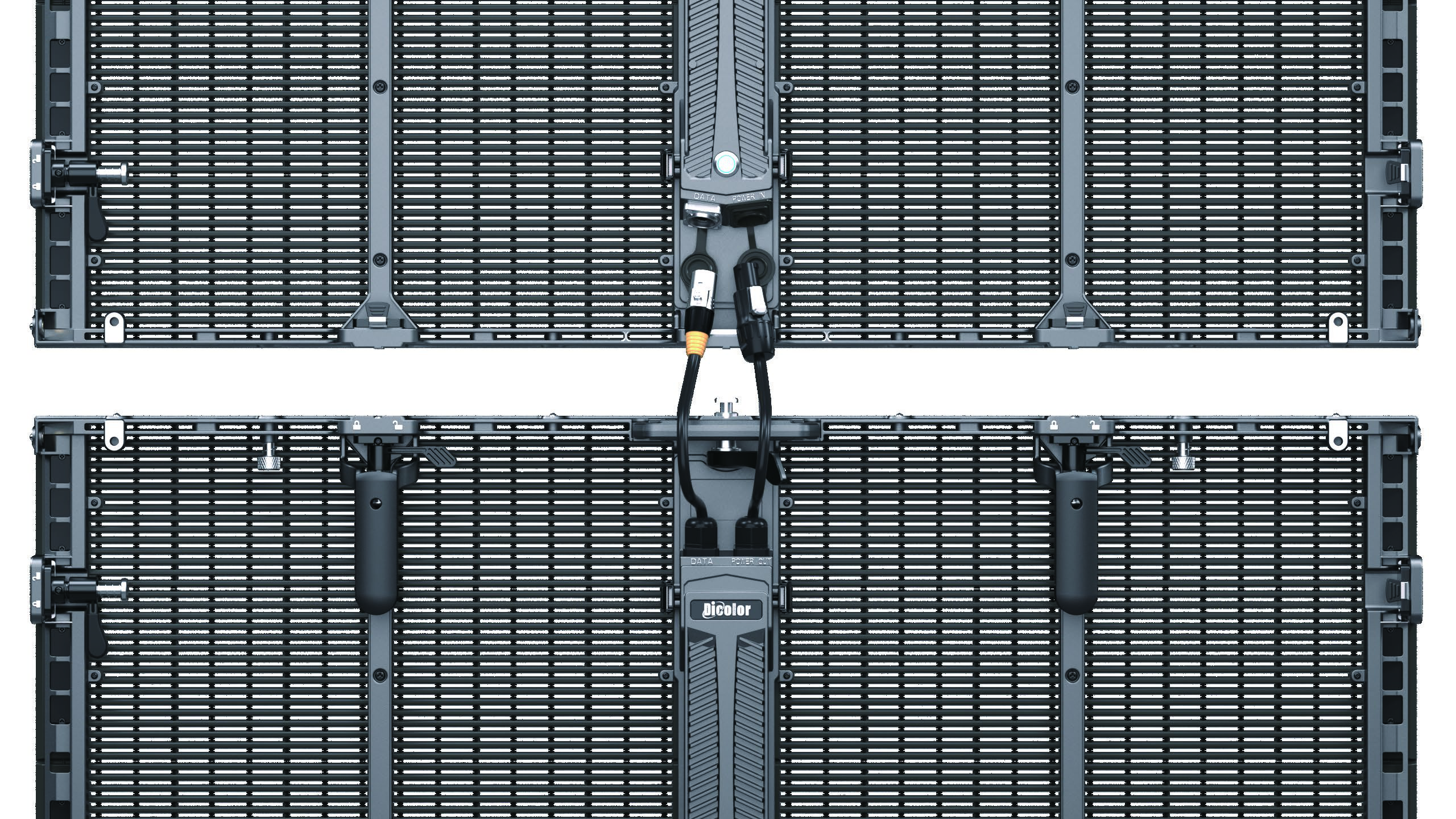

Suspends up to 20m without external reinforcement, and right-angle, curve and styling splicing meet varied stage shapes for large concert and event builds.

Up to 20m riggingCurve and right-angle splicing

Bright and camera-ready

Brightness up to 4500 nits suits indoor and outdoor use, with a 7680Hz refresh and 16-bit grayscale for camera-ready imagery.

Up to 4500 nits7680Hz

Additional Information

Specifications Spec sheet Product introduction Product video

Specification

UT-390 PLUS

UT-890 PLUS

Pixel pitch (mm)

3.9 to 7.8

8.9

LED

SMD1415

Brightness (nits)

4500

Cabinet material

Magnesium alloy

Cabinet dimensions (mm)

1000 x 1000 x 100

Resolution (px, W x H)

256 x 128

112 x 112

Cabinet weight (kg)

16.5

Grayscale (bit)

Refresh rate (Hz)

7680

Viewing angle (H/V)

140 / 140

Ingress protection

IP65 / IP54

Suspension

Up to 20m without external reinforcement

Certificate

CCC / CE / FCC / ETL

A larger UT Plus format (up to 8.9mm, 1000 x 1000mm cabinets, 4000 nits) is also available. Images and a downloadable spec sheet are coming soon. Contact us for current details.

Product video
